IO925, IO926, & IO927 High PrecisionResistor I/O Modules

IO925, IO926, IO927: High precision resistor simulation I/O modules

Easy to use solutions for applications requiring accurate simulation of resistive sensors, with Simulink^® driver blocks

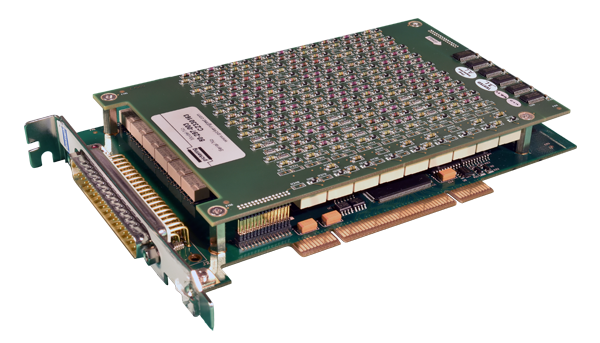

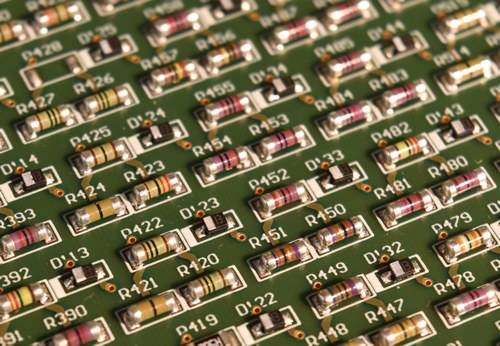

The IO925, IO926, and IO927 are high precision resistor modules with up to 18-channels of resistor chains in a single PCI slot. The flexible architecture allows the I/O module to be supplied in 0.125Ω, 0.25Ω, 0.5Ω, 1.0Ω, 2.0Ω resistance resolution versions, for applications requiring finer resolution, greater resistance range, or higher channel count.

These I/O modules are particularly well suited to applications such as the testing of engine controllers where resistive sensors provide information on parameters such as temperature.

Features

Up to 18 channels
Resistance resolution to 0.125Ω
Values from 1Ω to 1.5MΩ
Short and open circuit simulation
Software configurable

Variants

I/O module	Resolution	Range	Channels	Form factor
IO925-0125-1-09	0.125Ω	1Ω to 31.5Ω	9	PCI
IO925-0125-1-18	0.125Ω	1Ω to 31.5Ω	18	PCI
IO925-0125-2-09	0.125Ω	1.5Ω to 472Ω	9	PCI
IO925-0125-3-04	0.125Ω	2Ω to 6.97kΩ	4	PCI
IO925-0125-3-09	0.125Ω	2Ω to 6.97kΩ	9	PCI
IO925-0125-4-03	0.125Ω	2.5Ω to 94.9kΩ	3	PCI
IO925-0125-4-06	0.125Ω	2.5Ω to 94.9kΩ	6	PCI
IO925-0125-5-03	0.125Ω	3Ω to 1.51MΩ	3	PCI
IO925-0125-5-06	0.125Ω	3Ω to 1.51MΩ	6	PCI
IO925-0250-1-09	0.25Ω	1Ω to 62.1Ω	9	PCI
IO925-0250-1-18	0.25Ω	1Ω to 62.1Ω	18	PCI
IO925-0250-2-04	0.25Ω	1.5Ω to 925Ω	4	PCI
IO925-0250-2-09	0.25Ω	1.5Ω to 925Ω	9	PCI
IO925-0250-3-04	0.25Ω	2Ω to 13.6kΩ	4	PCI
IO925-0250-3-09	0.25Ω	2Ω to 13.6kΩ	9	PCI
IO925-0250-4-03	0.25Ω	2.5Ω to 189kΩ	3	PCI
IO925-0250-4-06	0.25Ω	2.5Ω to 189kΩ	6	PCI
IO925-0500-1-09	0.50Ω	1Ω to 122Ω	9	PCI
IO925-0500-1-18	0.50Ω	1Ω to 122Ω	18	PCI
IO925-0500-2-04	0.50Ω	1.5Ω to 1.81kΩ	4	PCI
IO925-0500-2-09	0.50Ω	1.5Ω to 1.81kΩ	9	PCI
IO925-0500-3-04	0.50Ω	2Ω to 26.7kΩ	4	PCI
IO925-0500-3-09	0.50Ω	2Ω to 26.7kΩ	9	PCI
IO925-0500-4-03	0.50Ω	2.5Ω to 375kΩ	3	PCI
IO925-0500-4-06	0.50Ω	2.5Ω to 375kΩ	6	PCI
IO926-0125-4-06	0.125Ω	2.5Ω to 102kΩ	6	PCI
IO926-0125-2-09	0.125Ω	1.5Ω to 472Ω	9	PCI
IO926-0125-3-09	0.125Ω	2Ω to 6.97kΩ	9	PCI
IO926-0125-5-06	0.125Ω	3Ω to 1.51MΩ	6	PCI
IO926-0125-2-04	0.125Ω	1.5Ω to 472Ω	4	PCI
IO926-0125-3-04	0.125Ω	2Ω to 6.97kΩ	4	PCI
IO926-0125-4-06	0.125Ω	2.5Ω to 395kΩ	6	PCI
IO926-0250-3-04	0.25Ω	2Ω to 13.6kΩ	4	PCI
IO926-0250-3-09	0.25Ω	2Ω to 13.5kΩ	9	PCI
IO926-0250-4-03	0.25Ω	2.5Ω to 201kΩ	3	PCI
IO926-0500-4-06	0.50Ω	2.5Ω to 395kΩ	6	PCI
IO927-1000-1-09	1.00Ω	1Ω to 239Ω	9	PCI
IO927-1000-1-18	1.00Ω	1Ω to 239Ω	18	PCI
IO927-1000-2-04	1.00Ω	1.5Ω to 3.55kΩ	4	PCI
IO927-1000-2-09	1.00Ω	1.5Ω to 3.55kΩ	9	PCI
IO927-1000-3-04	1.00Ω	2Ω to 52.4kΩ	4	PCI
IO927-1000-3-09	1.00Ω	2Ω to 52.4kΩ	9	PCI
IO927-1000-4-03	1.00Ω	2.5Ω to 759kΩ	3	PCI
IO927-1000-4-06	1.00Ω	2.5Ω to 759kΩ	6	PCI
IO927-2000-1-09	2.00Ω	1Ω to 470Ω	9	PCI
IO927-2000-1-18	2.00Ω	1Ω to 470Ω	18	PCI
IO927-2000-2-04	2.00Ω	1.5Ω to 6.97kΩ	4	PCI
IO927-2000-2-09	2.00Ω	1.5Ω to 6.97kΩ	9	PCI
IO927-2000-3-04	2.00Ω	2Ω to 102kΩ	4	PCI
IO927-2000-3-09	2.00Ω	2Ω to 102kΩ	9	PCI
IO927-2000-4-03	2.00Ω	2.5Ω to 1.51MΩ	3	PCI
IO927-2000-4-06	2.00Ω	2.5Ω to 1.51MΩ	6	PCI

Physical
Form factor	32-bit 32MHz PMC (PCI)
Power requirements	0.5W maximum
Connector	Male 37-way D-type
Environmental
Operating temperature	0 to 55°C
Relative humidity	0 to 90%, non-condensing
Electromagnetic interference immunity (EMI)	EN61000-6-1:2001
EMC emissions	EN55011:1998

Item ID	Product Name	Components
2I925X	IO925-0125-1-09	IO925-0125-1-09 High precision resistor simulation I/O module with 9 channels and resistance range of 1Ω to 31.5Ω, driver configurable in steps of 0.125Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2J925X	IO925-0125-1-18	IO925-0125-1-18 High precision resistor simulation I/O module with 18 channels and resistance range of 1Ω to 31.5Ω, driver configurable in steps of 0.125Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2L925X	IO925-0125-2-09	IO925-0125-2-09 High precision resistor simulation I/O module with 9 channels and resistance range of 1.5Ω to 472Ω, driver configurable in steps of 0.125Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2M925X	IO925-0125-3-04	IO925-0125-3-04 High precision resistor simulation I/O module with 4 channels and resistance range of 2Ω to 6.97kΩ, driver configurable in steps of 0.125Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2N925X	IO925-0125-3-09	IO925-0125-3-09 High precision resistor simulation I/O module with 9 channels and resistance range of 2Ω to 6.97kΩ, driver configurable in steps of 0.125Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2O925X	IO925-0125-4-03	IO925-0125-4-03 High precision resistor simulation I/O module with 3 channels and resistance range of 2.5Ω to 94.9kΩ, driver configurable in steps of 0.125Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2P925X	IO925-0125-4-06	IO925-0125-4-06 High precision resistor simulation I/O module with 6 channels and resistance range of 2.5Ω to 94.9kΩ, driver configurable in steps of 0.125Ω Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2Q925X	IO925-0125-5-03	IO925-0125-5-03 High precision resistor simulation I/O module with 3 channels and resistance range of 3Ω to 1.51MΩ, driver configurable in steps of 0.125Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2R925X	IO925-0125-4-06	IO925-0125-4-06 High precision resistor simulation I/O module with 6 channels and resistance range of 3Ω to 1.51MΩ, driver configurable in steps of 0.125Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2E925X	IO925-0250-1-09	IO925-0250-1-09 High precision resistor simulation I/O module with 9 channels and resistance range of 1Ω to 62.1Ω, driver configurable in steps of 0.25Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2F925X	IO925-0250-1-18	IO925-0250-1-18 High precision resistor simulation I/O module with 18 channels and resistance range of 1Ω to 62.1Ω, driver configurable in steps of 0.25Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2G925X	IO925-0250-2-04	IO925-0250-2-04 High precision resistor simulation I/O module with 4 channels and resistance range of 1.5Ω to 925Ω, driver configurable in steps of 0.25Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2H925X	IO925-0250-2-09	IO925-0250-2-09 High precision resistor simulation I/O module with 9 channels and resistance range of 1.5Ω to 925Ω, driver configurable in steps of 0.25Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2A925X	IO925-0250-3-04	IO925-0250-3-04 High precision resistor simulation I/O module with 4 channels and resistance range of 2Ω to 13.6kΩ, driver configurable in steps of 0.25Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2B925X	IO925-0250-3-09	IO925-0250-3-09 High precision resistor simulation I/O module with 9 channels and resistance range of 2Ω to 13.6kΩ, driver configurable in steps of 0.25Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2C925X	IO925-0250-4-03	IO925-0250-4-03 High precision resistor simulation I/O module with 3 channels and resistance range of 2.5Ω to 189kΩ, driver configurable in steps of 0.25Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2D925X	IO925-0250-4-06	IO925-0250-4-06 High precision resistor simulation I/O module with 6 channels and resistance range of 2.5Ω to 189kΩ, driver configurable in steps of 0.25Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2S925X	IO925-0500-1-09	IO925-0500-1-09 High precision resistor simulation I/O module with 9 channels and resistance range of 1Ω to 122Ω, driver configurable in steps of 0.50Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2T925X	IO925-0500-1-18	IO925-0500-1-18 High precision resistor simulation I/O module with 18 channels and resistance range of 1Ω to 122Ω, driver configurable in steps of 0.50Ω Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2U925X	IO925-0500-2-04	IO925-0500-2-04 Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2V925X	IO925-0500-2-09	IO925-0500-2-09 High precision resistor simulation I/O module with 9 channels and resistance range of 1.5Ω to 1.81kΩ, driver configurable in steps of 0.50Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2W925X	IO925-0500-3-04	IO925-0500-3-04 High precision resistor simulation I/O module with 4 channels and resistance range of 2Ω to 26.7kΩ, driver configurable in steps of 0.50Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2X925X	IO925-0500-3-09	IO925-0500-3-09 High precision resistor simulation I/O module with 9 channels and resistance range of 2Ω to 26.7kΩ, driver configurable in steps of 0.50Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2Y925X	IO925-0500-4-03	IO925-0500-4-03 High precision resistor simulation I/O module with 3 channels and resistance range of 2.5Ω to 379kΩ, driver configurable in steps of 0.50Ω Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2Z925X	IO925-0500-4-06	IO925-0500-4-06 High precision resistor simulation I/O module with 6 channels and resistance range of 2.5Ω to 379kΩ, driver configurable in steps of 0.50Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2A926X	IO926-0250-3-04	IO926-0250-3-04 High precision resistor simulation I/O module with 4 channels and resistance range of 2Ω to 13.6kΩ, driver configurable in steps of 0.25Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2B926X	IO926-0250-3-09	IO926-0250-3-09 High precision resistor simulation I/O module with 9 channels and resistance range of 2Ω to 13.5kΩ, driver configurable in steps of 0.25Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2C926X	IO926-0250-4-03	IO926-0250-4-03 High precision resistor simulation I/O module with 3 channels and resistance range of 2.5Ω to 201kΩ, driver configurable in steps of 0.25Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2P926X	IO926-0125-4-06	IO926-0125-4-06 High precision resistor simulation I/O module with 6 channels and resistance range of 2.5Ω to 102kΩ, driver configurable in steps of 0.125Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2L926X	IO926-0125-2-09	IO926-0125-2-09 High precision resistor simulation I/O module with 9 channels and resistance range of 1.5Ω to 472Ω, driver configurable in steps of 0.125Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2Z926X	IO926-0500-4-06	IO926-0500-4-06 High precision resistor simulation I/O module with 6 channels and resistance range of 2.5Ω to 395kΩ, driver configurable in steps of 0.5Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2N926X	IO926-0125-3-09	IO926-0125-3-09 High precision resistor simulation I/O module with 9 channels and resistance range of 2Ω to 6.97kΩ, driver configurable in steps of 0.125Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2R926X	IO926-0125-5-06	IO926-0125-5-06 High precision resistor simulation I/O module with 6 channels and resistance range of 3Ω to 1.51MΩ, driver configurable in steps of 0.125Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2K926	IO926-0125-2-04	IO926-0125-2-04 High precision resistor simulation I/O module with 4 channels and resistance range of 1.5Ω to 472Ω, driver configurable in steps of 0.125Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2M926	IO926-0125-3-04	IO926-0125-3-04 High precision resistor simulation I/O module with 4 channels and resistance range of 2Ω to 6.97kΩ, driver configurable in steps of 0.125Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2P926X	IO926-0125-4-06	IO926-0125-4-06 High precision resistor simulation I/O module with 4 channels and resistance range of 2.5Ω to 102kΩ, driver configurable in steps of 0.125Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2A927X	IO927-1000-1-09	IO927-1000-1-09 High precision resistor simulation I/O module with 9 channels and resistance range of 1Ω to 239Ω, driver configurable in steps of 1.00Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2B927X	IO927-1000-1-18	IO927-1000-1-18 High precision resistor simulation I/O module with 18 channels and resistance range of 1Ω to 239Ω, driver configurable in steps of 1.00Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2C927X	IO927-1000-2-04	IO927-1000-2-04 High precision resistor simulation I/O module with 4 channels and resistance range of 1.5Ω to 3.55kΩ, driver configurable in steps of 1.00Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2D927X	IO927-1000-2-09	IO927-1000-2-09 High precision resistor simulation I/O module with 9 channels and resistance range of 1.5Ω to 3.55kΩ, driver configurable in steps of 1.00Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2E927X	IO927-1000-3-04	IO927-1000-3-04 High precision resistor simulation I/O module with 4 channels and resistance range of 2Ω to 52.4kΩ, driver configurable in steps of 1.00Ω Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2F927X	IO927-1000-3-09	IO927-1000-3-09 High precision resistor simulation I/O module with 9 channels and resistance range of 2Ω to 52.4kΩ, driver configurable in steps of 1.00Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2G927X	IO927-1000-4-03	IO927-1000-4-03 High precision resistor simulation I/O module with 3 channels and resistance range of 2.5Ω to 759kΩ, driver configurable in steps of 1.00Ω Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2H927X	IO927-1000-4-06	IO927-1000-4-06 High precision resistor simulation I/O module with 6 channels and resistance range of 2.5Ω to 759kΩ, driver configurable in steps of 1.00Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2I927X	IO927-2000-1-09	IO927-2000-1-09 High precision resistor simulation I/O module with 9 channels and resistance range of 1Ω to 470Ω, driver configurable in steps of 2.00Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2J927X	IO927-2000-1-18	IO927-2000-1-18 High precision resistor simulation I/O module with 18 channels and resistance range of 1Ω to 470Ω, driver configurable in steps of 2.00Ω Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2K927X	IO927-2000-2-04	IO927-2000-2-04 High precision resistor simulation I/O module with 4 channels and resistance range of 1.5Ω to 6.97kΩ, driver configurable in steps of 2.00Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2L927X	IO927-2000-2-09	IO927-2000-2-09 High precision resistor simulation I/O module with 9 channels and resistance range of 1.5Ω to 6.97kΩ, driver configurable in steps of 2.00Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2M927X	IO927-2000-3-04	IO927-2000-3-04 High precision resistor simulation I/O module with 4 channels and resistance range of 2Ω to 102kΩ, driver configurable in steps of 2.00Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2N927X	IO927-2000-3-09	IO927-2000-3-09 High precision resistor simulation I/O module with 9 channels and resistance range of 2Ω to 102kΩ, driver configurable in steps of 2.00Ω Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2O927X	IO927-2000-4-03	IO927-2000-4-03 High precision resistor simulation I/O module with 3 channels and resistance range of 2.5Ω to 1.51MΩ, driver configurable in steps of 2.00Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine
2P927X	IO927-2000-4-06	IO927-2000-4-06 High precision resistor simulation I/O module with 6 channels and resistance range of 2.5Ω to 1.51MΩ, driver configurable in steps of 2.00Ω. Driver block library for Simulink^® Real-Time™ Installation into real-time target machine

Key to X in Item ID
Please replace the X with the code number of the specific target machine into which this I/O module shall be installed:

6 = Performance real-time target machine

Pricing information
We don't publish pricing information on our website. Upon request by e-mail or phone we can provide a complete price list covering our entire product portfolio in various currencies. We recommend that you get in touch with us to discuss your specific needs. We can then quickly provide you with a tailored quotation including technical and pricing information.
