Communications Protocols

Benefit from a wide range of supported communication protocols extending to various industries.

Connect your devices via dedicated I/O modules, Ethernet or Serial interfaces, or leverage specific I/O Modules.
All solutions are turnkey and come with Simulink^®driver blocks for a seamless workflow.

Cross-Industry Protocols

CAN - CAN FD, CAN + SAE J1939, LIN
Serial - RS-422 / RS-485 / RS-232
SPI
I²C
Real-Time UDP, Raw Ethernet
PTP (Precision Time Protocol)
MQTT
Shared Memory
Aurora
IRIG with GPS
MVB / WTB
Data Distribution Service (DDS) Middleware

}

Selection Guide - Communication Protocols I/O modules

Legend

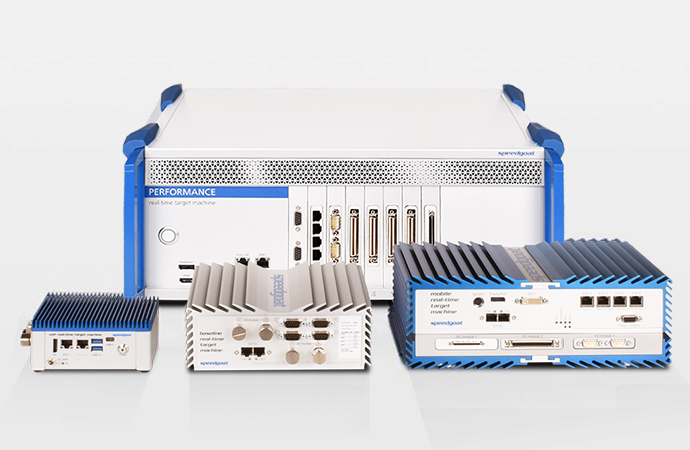

Compatible test systems:

P - Performance | PL - Pulse | B - Baseline | M - Mobile | U - Unit real-time target machine

I/O module	System	Protocol	No. of channels	Connectors/Cable	Max Baud rate/Transmission rate (Mb/s)
IO503	P, PL, B, M	Serial, Modbus^® RTU	4	50-pin male SCSI2	5.5296
IO504	P, PL, B, M	Serial, Modbus^® RTU	8	50-pin male SCSI2	5.5296
IO505	P, PL, B, M	Serial, Modbus^® RTU	4	50-pin male SCSI2	5.5296
IO512	P, B, M	Serial	4	68-pin male SCSI3	10
IO581	B, U	Serial, Modbus^® RTU	4	9-pin D-sub connector x 4	10
IO601	P, B, M	CAN & SAE J1939, LIN, XCP	2	9-pin D-sub connector	1
IO602	P, B, M	CAN	2, 4	1x 25-pin D-sub front connector or 4x 9-pin D-sub with the splitter cable	5
IO603	P, PL, B, M	CAN & SAE J1939, LIN, XCP	4	25-Pin Female D-Sub to 5x 9-Pin Male D-Sub cable	8
IO610	P, M	CAN & SAE J1939,XCP	2	9-pin D-sub connector x 2	5
IO611	P, M	CAN & SAE J1939, LIN, XCP	4	9-pin D-sub connector x 2	5
IO612	P, M	CAN & SAE J1939, XCP	4	9-pin D-sub connector x 2	1
IO613	B	CAN & SAE J1939, XCP	2	9-pin D-sub connector x 2	5
IO614	B	CAN & SAE J1939, LIN, XCP	4	9-pin D-sub connector x 4	1
IO619	P, B, M	MVB/WTB	32	9-pin D-sub connector	1.5
IO623	P, B, M	FlexRay	4	4x Binder 712 8-pol connector	10
IO624	P, PL, B, M	PSI5	8	50-pin Mini D (MDR50)	0.18
IO629	P	ARINC	2, 4
IO641	P, B, M, U	PROFIBUS^®	1	9-pin D-sub connector	12
IO642	P, B, M, U	PROFIBUS^®	1	9-pin D-sub connector	1
IO642-32	M	PROFIBUS^®	32	9-pin D-sub connector x 2	1
IO643	P, B, M, U	CANopen^®	1	9-pin D-sub connector	1
IO644	P, B, M, U	CANopen^®	1	9-pin D-sub connector	1
IO682	P, B, M	ARINC	2, 4, 8, 16
IO691	B, U	CAN & SAE J1939, XCP	2	9-pin D-sub connector x 2	8
IO710	P	DNP3, IEC 61850, EtherCAT^®, RT UDP, XCP, Modbus^® TCP, OPC UA, MQTT	1	RJ-45	1000
IO715	P, PL, B, M	DNP3, IEC 61850, EtherCAT^®, RT UDP, XCP, Modbus^® TCP, OPC UA, MQTT	4	RJ-45 x 4	1000
IO716	P	DNP3, EtherCAT^®, RT UDP, XCP, Modbus^® TCP, OPC UA	1	2-pin 2 mm Mi II connector	1000
IO717	P	DNP3, EtherCAT^®, RT UDP, XCP, Modbus^® TCP, OPC UA	2	2x RJ-45	10000
IO723	P	CAN HS, CAN FD, 100BASE-T1, and 1000BASE-T1 Ethernet	6	BusCable 2-way 200 8M9m 9SUBDf	1000
IO750	P, B, M	EtherCAT^®	1	RJ-45 x 2	100
IO751	P, B, M, U	PROFINET^®	1	RJ-45 x 2	100
IO752	P, B, M, U	PROFINET^®	1	RJ-45 x 2	100
IO752-32	M	PROFINET^®	32	RJ-45 x 4	100
IO753	P, B, M, U	Modbus^® TCP	1	RJ-45 x 2	100
IO754	P, B, M, U	Modbus^® TCP	1	RJ-45	100
IO754-32	M	Modbus^® TCP	32	RJ-45	100
IO755	P, B, M, U	EtherNet/IP^™	1	RJ-45 x 2	100
IO756	P, B, M, U	EtherNet/IP^™	1	RJ-45 x 2	100
IO756-32	M	EtherNet/IP^™	32	RJ-45 x 4	100
IO758	P, B, M, U	POWERLINK	1	RJ-45 x 2	100
IO781	P, B, M	ARINC			1000
IO791	B, U	DNP3, IEC 61850, EtherNet/IP^™, Modbus^® TCP, OPC UA, MQTT	2	RJ-45 x 2	1000
